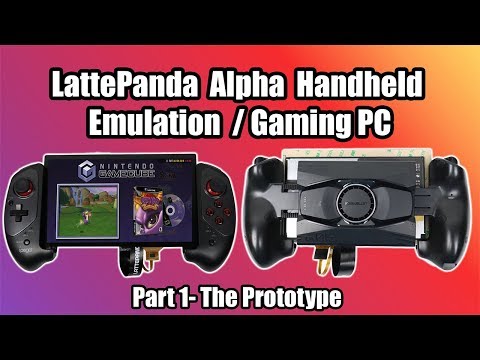

I wanted to build a portable Emulation / Gaming Handheld using the LattePanda alpha and the new accessories like the Tian Case and EDP Touch Screen Display so today in this video I put together a prototype unit that is very functional but I still have some work to do like adding the batteries and Speakers but this is Part 1 in a 2 Part series so keep an eye out on the channel for the finished fully portable Latte Panda Alpha! Buy the Alpha Here:
LattePanda Alpha 864:
LattePanda Alpha 864 (Win10 Pro activated:
LattePanda Alpha 800:
Titan Case $ EDP Display:
Ipega 9083 controller:
LattePanda Specs:
CPU：Intel 7th Gen Core m3-7y30
Core：1.6-2.6GHz Dual-Core，Four-Thread
Benchmark (PassMark): Up to 3500, double computing power compared with same price range products in the market
Graphics：Intel HD Graphics 615, 300-900MHz
RAM：8G LPDDR3 1866MHz Dual-Channel
Memory：64GB eMMC V5.0l
External Memory： 1x M.2 M Key, PCIe 4x, Supports NVMe SSD and SATA SSD 1x M.2 E Key, PCIe 2x，Supports USB2.0, UART, PCM
Connectivity： WIFI 802.11 AC, 2.4G & 5G Dual Band Bluetooth 4.2 Gigabyte Ethernet
USB Ports： 3x USB 3.0 Type A 1x USB Type C, supports PD, DP, USB 3.0
Display： HDMI Output Type-C DP Support Extendable eDP touch displays
Co-processor：Arduino Leonardo
GPIO & Other Features：2x 50p GPIOs including I2C, I2S, USB, RS232, UART, RTC，Power Management，Extendable power button，everything you need
OS Support：Windows 10 ProLinux UbuntuFollow Me On Twitter:
