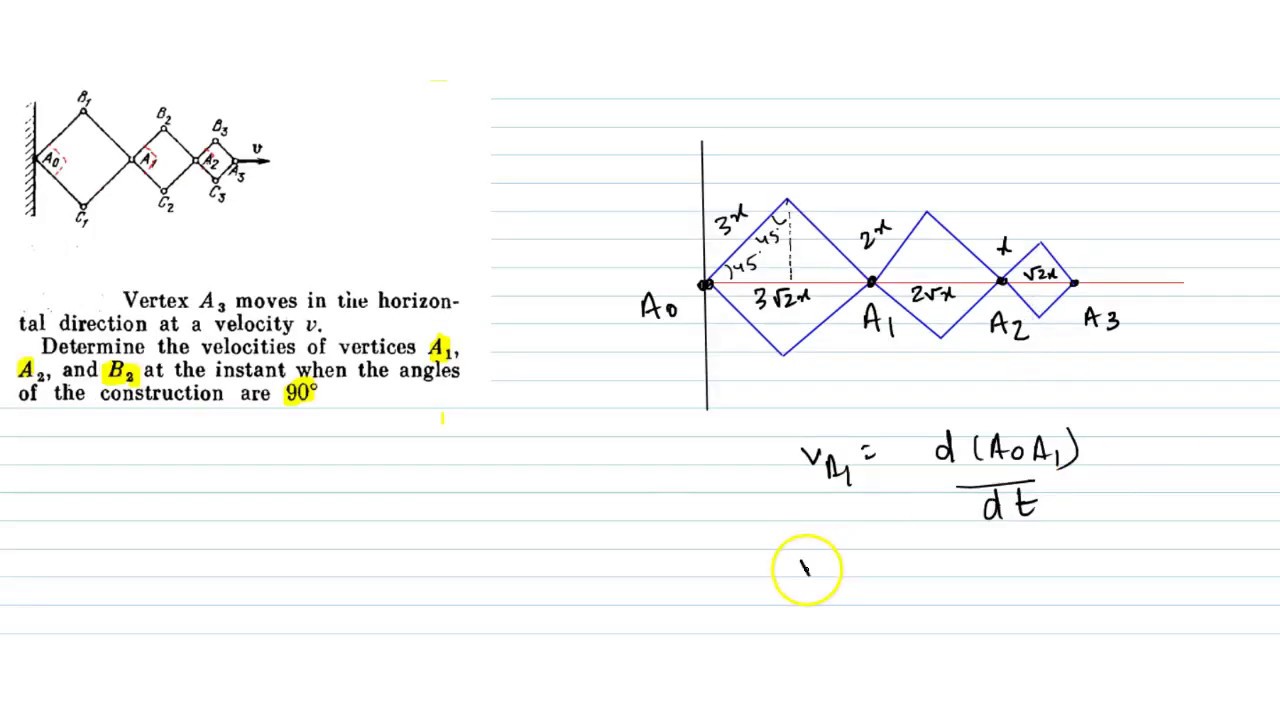

A hinged construction consists of three rhombuses with the ratio of sides 3:2:1 . Vertex A3 moves in the horizontal direction at a velocity v. Determine the velocities of vertices A1, A2, and B2 at the instant when the angles of the construction are 90 degrees.
Constraint Relations:A hinged construction consists of three rhombuses with the ratio of sides 3:2:1
A hinged construction consists of three rhombuses with the ratio of sides 3:2:1 . Vertex A3 moves in the horizontal direction at a velocity v. Determine the velocities of vertices A1, A2, and B2 at the instant when the angles of the construction are 90 degrees.
